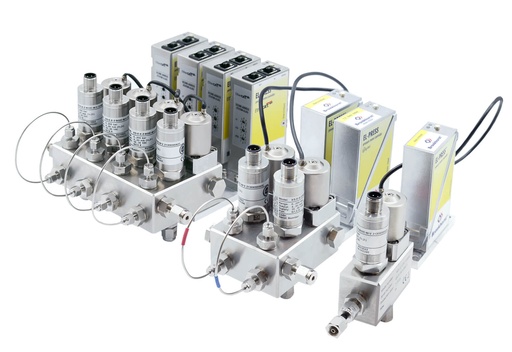

PCS - ERC Series (web)
Prices start from €2199, based on selected options.
GENERAL SPECIFICATIONS:
Classification: IP-40
Fluid: N2/Air
Outlet pressure, relief: 0 barg
Valve function: Normally closed
Pressure controlled volume: 5 cc
Temperature: 20 °C
Seals + plunger: FKM
SENSOR SPECIFICATIONS:
Accuracy: ±0.5% FS at calibration conditions
Repeatability: ≤ 0.01% RD
Hysteresis: Included in accuracy
Calibration certificate: 3-point calibration
ELECTRICAL SPECIFICATIONS:
Secondary output signal: RS-232 - 0...100% | 4…20 mA
Secondary setpoint: RS-232 - 0...100% | 4…20 mA
Control action: P600/P700
Supply: +15...24 Vdc
https://www.pressurecontrolsolutions.com/products/electronic-pressure-controllers/erc-series/
This product is no longer available.
