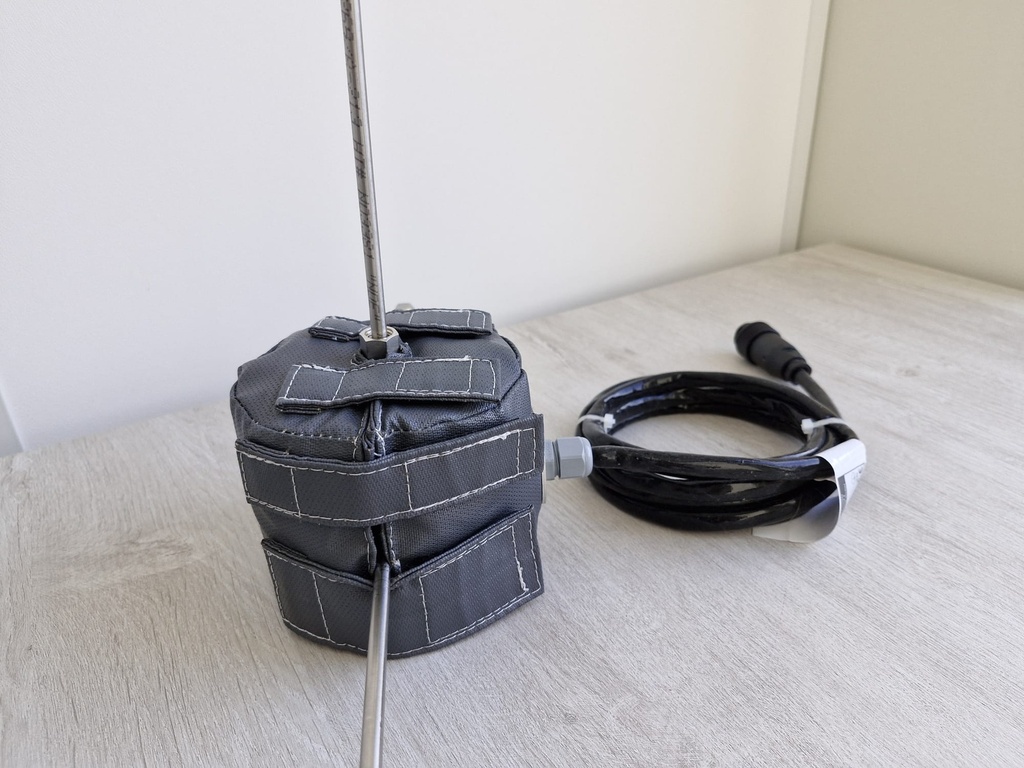

Heating Mantle for Equilibar Research Series Control Valve
One-piece slotted design
Openings for inlet / outlet + bracket
Outer jacket PTFE-coated glass fabric
Inner jacket glass fabric
Insulation thickness ~ 25 mm
Heated length depending on model
Attachment Velcro fastener
Glass insulated heating conductor without protective conductor braiding
Heating conductor temperature max. 450 °C
Operating temperature up to 300 °C
Nominal power 100...150W
Nominal voltage 230 V AC
Pt-100 temperature sensor, permanently installed
Temperature limiter without, customer specification
Design not moisture-proof, not protective earthed
Regulated operating mode, provided by the customer
Mains and sensor cable 2.0 m long with 7-pin. plug
