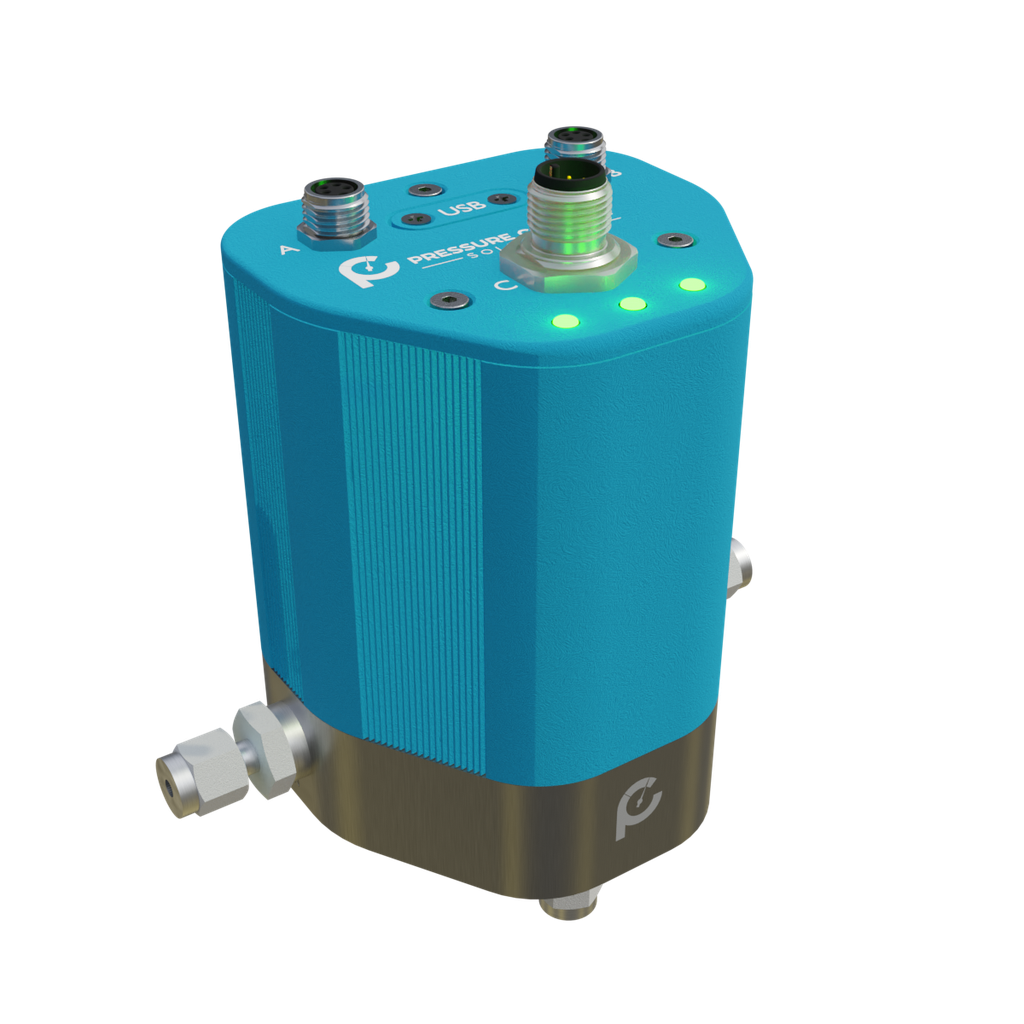

EQ-DA Pro Series Electro-Pneumatic Pilot Pressure Controller
Sensor accuracy: ±0.05% F.S.
Control stability ±0.005% F.S.
Repeatability: ±0.02% F.S.
Supply pressure: max.10% above sensor range
Compatible media: N2/Air/Inert gases
Body material: SS316L
Valve function: Normally closed
Static seals: EPDM
Plunger material up to 70 barg: PFA; >200 barg: PTFE
Ingress protection class: IP-65
Temperature rating: -20 to 50 °C
Supply voltage: +24 Vdc
Electrical connections:
1x USB-C: RS485 Modbus RTU
2x M8 port: Analog I/O 4…20 mA, 0...20 mA, 0…5 Vdc, 0…10 Vdc
1x M12 port: Power +24 Vdc and analog I/O 4…20 mA, 0...20 mA, 0…5 Vdc, 0…10 Vdc | RS485 Modbus RTU
Default ModBus communication settings: Modbus address: 1 | Baudrate: 115200 | Parity: NONE | Data Bits: 8 | Stop Bits: 1
I/O configurable via: https://gui.pressurecontrolsolutions.com
More details on www.pressurecontrolsolutions.com/eq-da/
Device calibration details:
