Products displayed on this page are examplary of the endless configuration possibilities and options that Equilibar and PCS have to offer. All our products and quotations are tailored to customer requirements. Check-out your shopping cart to obtain a customized quotation including pricing information.

  1. Products
  2. Automated Process Controllers
Base Pricelist

Automated Process Controllers

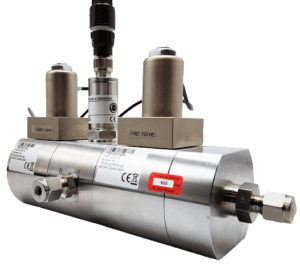

Digital Electronic Dual Valve Controller
Supply pressure: 110% of pressure range
Electrical connection: 8 pin M12x1
Setpoint : 4...20 mA (default)
Measured value 4...20 mA (Default)
External sensor connection 4 pin M12x1
External sensor signal 4...20 mA
Digital connection: 4 pin M12x1 (USB cable not included)
Voltage: 24 VDC ±10%
Power consumption electrical: max. 24.5 W
Valves: In and outlet valve normally closed (pressure hold)
Medium: compressed air, neutral gases filtered 40 μm, no condensate
Air consumption: no permanent air consumption
Connection thread: G1/8”
Ingress protection: IP 67
Operating temperature range: -5 to +70 °C
Hysteresis: < 0.2% of the corresponding range
Repeatability: < 0.2% of the corresponding range
€ 949,00 949.0 EUR
