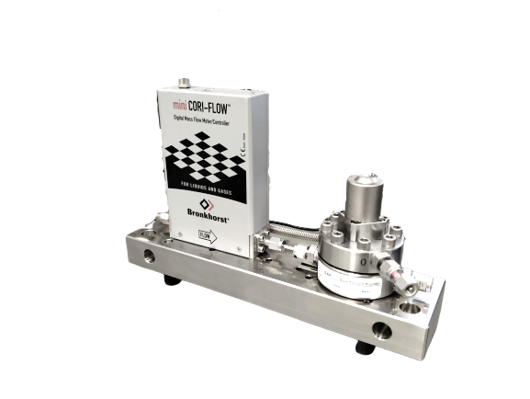

(WIP) Coriolis Flowmeter with Equilibar Control Valve

• Process parameter
  • Fluid
  • -
• Process parameter
  • Phase
  • -
• Process parameter
  • Flow | range
  • -
• Process parameter
  • Inlet pressure | range
  • -
• Process parameter
  • Outlet pressure | range
  • -
• Process parameter
  • Temperature | range
  • -
• Pressure rating in psig/bar Pressure rating: 450 psig/30 barg Pressure rating: 600 psig/40 barg Pressure rating: 1000 psig/70 barg Pressure rating: 1500 psig/100 barg Pressure rating: 2000 psig/135 barg Pressure rating: 2500 psig/170 barg Pressure rating: 3000 psig/200 barg
• CORI-FLOW CORI-FLOW: ML120 (5 gr/h min | 200 gr/h max Full Scale) CORI-FLOW: M12 (5 gr/h min | 200 gr/h max Full Scale) CORI-FLOW: M13 (50 gr/h min | 2000 gr/h max Full Scale) CORI-FLOW: M14 (1 kg/h min | 30 kg/h max Full Scale) CORI-FLOW: M15 (5 kg/h min | 300 kg/h max Full Scale) CORI-FLOW: None
• Communication A Analog default control mode + RS-232 | n/c control M Modbus RTU + RS-232 | n/c control + € 177.00 P Profibus + RS-232 | n/c control + € 231.00 R Flowbus + RS-232 | n/c control + € 177.00 Communication protocol: None
• Analog output
  • Analog output: A 0...5 Vdc
  • Analog output: G 4...20 mA sourcing
  • Analog output: None
• Wetted metal material: Wetted metal material: SS316/316L Wetted metal material: Hastelloy C276
• Process connection Process connection: 1/16" OD Process connection: 1/8" OD Process connection: 1/4" OD Process connection: 1/2" OD Process connection: 3 mm OD Process connection: 6 mm OD Process connection: 12 mm OD
• Mass block
  • Mass block: 2 kg
  • Mass block: 4.5 kg
  • Mass block: none
• Mass block dampener Mass block dampener: None Mass block dampener: 2 kg Mass block dampener: 2 kg with female thread
• Connection between MFC and BPR
  • Connection between MFC and BPR: 1/8" OD
  • Connection between MFC and BPR: 1/4" OD
  • Connection between MFC and BPR: 6 mm OD
  • Connection between MFC and BPR: 12 mm OD
  • Connection between MFC and BPR: 1/2" OD
• Equilibar valve model LF-series HF-series ZF-series U3L-series H3P-series
• Process port size Process port size: 1/8" Process port size: 1/4" Process port size: 1/4" on H3P | U3L | ZF
• Process port type Process port: BSPP with O-ring cavity
• Reference port connection Reference port connection: 1/8" OD compression type Reference port connection: 1/4" OD compression type Reference port connection: 6 mm OD compression type
• Diaphragm mat/mil Material and thickness: Hastelloy C276 | 5 mil | H5 Material and thickness: PEEK | 10 mil | K10 Material and thickness: PEEK | 15 mil | K15 Material and thickness: PEEK | 20 mil | K20 Material and thickness: PGL | 10.3 mil | G10 Material and thickness: PGL | 15.3 mil | G15 Material and thickness: PGL | 22.3 mil | G22 Material and thickness: Polyimid | 5 mil | I5 Material and thickness: Polyimid | 8 mil | I8 Material and thickness: SS | 5 mil
• Wetted O-ring Material Wetted O-ring material: Kalrez 7075 Wetted O-ring material Kalrez 7090
• Orifice size: Orifice size: Ø 0.05 mm Orifice size: Ø 0.07 mm Orifice size: Ø 0.1 mm Orifice size: Ø 0.14 mm Orifice size: Ø 0.2 mm Orifice size: None
• Flow Restrictor Position
  • Flow Restrictor Position: Upstream | Full Pressure
  • Flow Restrictor Position: Downstream | Pressure Release
• Flow restrictor selection 20 micron | black flow restrictor 30 micron | red flow restrictor 50 micron | blue flow restrictor 100 micron | yellow flow restrictor 500 micron | grey flow restrictor

This combination does not exist.

Compare
